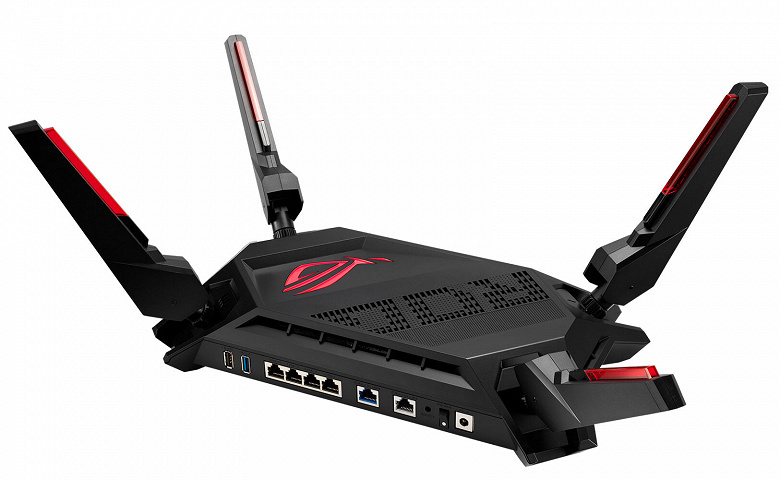

Роутер Asus ROG Rapture GT-AX6000 802.11ax 2.4/5ГГц 5952Mbps 2xGbLAN USB

Стандарт связи
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IEEE 802.11ax
IPv4
IPv6
Сегмент продукта
Скорость AX6000
Технология AX
Да
Скорость обмена данными
2,4 ГГц AX: 4x4 (Tx/Rx) 1024 QAM 20/40 МГц, до 1148 Мб/с
5 ГГц AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160 МГц, до 4804 Мб/с
Антенна
External antenna x 4
Передача/Получение
2,4 ГГц 4 x 4
5 ГГц 4 x 4
Процессор
2.0 GHz quad-core processor
Память
256 MB Flash, 1 GB RAM
Технология Wi-Fi
OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth,
Рабочая частота
2.4G Hz / 5 GHz
Разъемы
RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
RJ45 for 2.5 Gigabits BaseT for LAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
USB 2.0 x 1
Кнопка
WPS Button,
Reset Button,
Power Button,
LED Control Button
Индикатор LED
Power x 1
2.4GHz x 1
5GHz x 1
2.5G WAN x 1
2.5G LAN x 1
LAN x 1
WPS x 1
Блок питания
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current
Комплектация
GT-AX6000 WiFi 6 Dual-Band Gaming Router
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
Вес продукта (г)
1121.4 g
AiMesh
Да
Router APP
Да
Игра
Да
AiProtection
AiProtection Pro
Да
Родительский контроль
Да
Контроль трафика
Да
Maximum Bandwidth limiter rule :
32
Да
Maximum Traditional QoS rule :
32
Да
Traffic analysis period :
Daily, Weekly, Monthly
Да
Беспроводной
Да
WiFi Encryption :
Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
Да
Maximum Guest Network rule :
2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Guest Network Encryption :
Open system, WPA/WPA2/WPA3-Personal
Да
Maximum MAC filters :
64
Да
Airtime fairness
RADIUS Server
Universal beamforming
WAN
Explicit beamforming
Internet connection Type :
PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule :
64
Port triggering
Maximum port triggering rule :
32
DMZ
DDNS
NAT Passthrough :
PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IGMP snooping
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule :
64
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Fusion
Применение USB
File System :
HFS+, NTFS, vFAT, ext2, ext3, ext4
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Управление
Operating mode :
Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
Operating system :
ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter :
64
Maximum Firewall network service filter :
32
Maximum Firewall URL filter :
64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
